New! Soft Start+DC Filter+Power control combo


제조사 Dexa Technologies, Denmark
상품코드 ap0513
판매단위
판매가 135,000
주문수량
EA
적립금 1,350원
재고 품절
위시리스트에 넣기


상세 정보

*구입전 필독사항*

AUDIO DIY는 위험 부담을 알고 자신의 책임하에 제작, 개조 및 수리 등을 하는 것입니다.
DEXA제품은 출고시 완전히 TEST되어 판매되는 제품이므로 구입제품을 개봉한 후 생기는 문제에 대해서는
어떠한 이유로도 교환 또는 반품이 되지 않으니 이점 양지하시기 바랍니다.



Soft Start / DC Filter



NewClassD Soft Start circuit prevents high inrush currents from big mains transformers, that will normally blow fuses, overload switches and stress the rectifiers and capacitors. With this soft start circuit, the mains is connected slowly and smoothly to the power supply preventing any problems.

The DC Filter conditions the mains power, and removes the DC component. This will stop your transformer from humming. (Mechanical Hum).

This 2011 model includes also an offline power controller, which can also function as mains switch. You can connect a pushbutton and an LED to a set of terminals, and use them to switch the amplifier on and off. These are of course offline, so no special safety precautions have to be observed.
The middle terminal of the mains input is [optional] earth connection for the Y mains filter portion. You can use it to connect your chassis to the earth of the IEC mains lead.



The connection is straightforward. Keep a distance from the edge of the PCB to the chassis, to allow for safe operation.
CAUTION! This module has LIVE Mains Voltage on it, and you should NEVER touch it when it is connected to the mains! Also be CAREFUL that no metal objects come near the module when in operation!

This module is specially adapted for use with NewClassD modules, since it has very short break-in time. (1 sec). It will work safely with transformers up to 2000VA. A special fused output for an AUX transformer is provided to allow connection of a Gate Drive transformer, in case a Gate Driver winding is not placed on the main transformer. It is essential that such a transformer has it's own fuse, since a 6.3 or 8 Amp main fuse will not blow in the event something is wrong with it. So therefore we have provided a separate fused output on the Soft Start module, to allow easy connection of such Gate Drive transformer. The use of a separate Gate Drive transformer is optional.

The Soft Start Module offered is a Combo of Soft Start / DC Filter (Both functions are on the board, with offline pushbutton switch function. Note the actual pushbutton is not included.




Push Switch 정보

[조립부 가공]

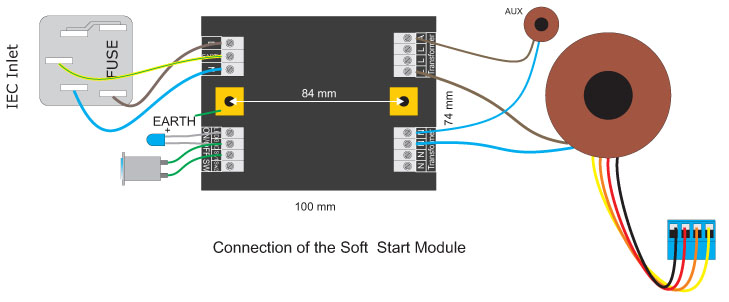

[결선도]

동작전원선: 3, 4
LED전원선: a=GND, b=+

[Soft start와 연결방법]
4 and a: GND와 연결
b: LED와 연결
3: S/W1 or S/W2와 연결
