> Dact/Dual Connect > Stainless Steel Knobs
Stainless Steel Knobs


제조사 DACT, Denmark
상품코드 da0104
판매단위
판매가 18,000원
옵션적용가 : 18,000
선택사양 :
주문수량
EA
재고 3개
바로 구입 장바구니에 담기 위시리스트에 넣기


상세 정보

Knobs. Danish Audio ConnecT (DACT) high quality steel knobs for DACT audio controls CT2, CT3 and CT4. The DACT knobs are designed to match the visual and mechanical quality level of our switches. Solid stainless steel.

DACT logo
DACT switch accessories

DACT is offering four different sizes of knobs that are specially designed for using with DACT audio switches. All four knobs are hand-made, available in solid stainless steel with raw steel look.
One important characteristic of the CT knobs is that they are made of 'audio grade” materials. In terms of components that are not used directly in the signal path, but relatively close to the audio signals, Audio Grade Materials means
1. Non-magnetic.
2. No non-linear dielectric loss (like for instance that of certain plastics).
The DACT knobs were designed with the right “feel” so the perception of the knobs match the quality of our switches. Therefore, of course, low cost plastic knobs were out of the question from the beginning. There is no way that a leight-weight plastic knob can match the delicate mechanism of our switches.
Which size of knob to choose depends on your preference. The smaller knobs give a more exact clicking feel especially on our attenuators, while the slightly harder feel of our input selectors may favour the larger knobs.

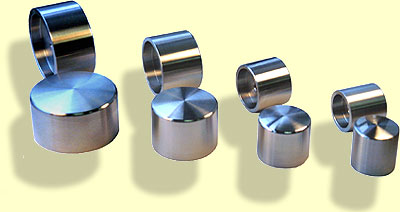

DACT knobs

Photo: The family of stainless steel knobs.
From left to right: CT-knob4/steel, CT-knob3/steel, CT-knob2/steel, CT-knob1/steel

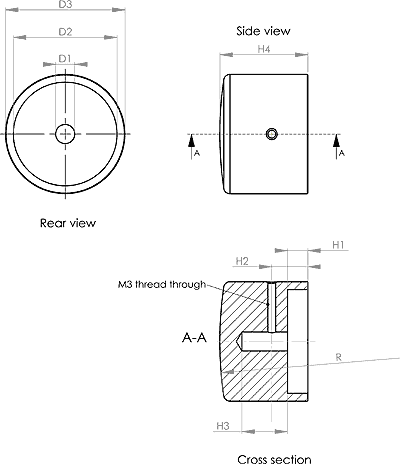

Drawing of DACT knobs

Turning knob

Right: Drawing of the CT-knobs.
Left: 3D drawings of the CT-knobs seen from side/front and side/rear respectively.

Switch knob



CT-knob1/steel

CT-knob2/steel

CT-knob3/steel

CT-knob4/steel

D1

mm

6.05

6.05

6.05

6.05

inch

0.238

0.238

0.238

0.238

D2

mm

20.1

25.0

33.0

42.0

inch

0.79

0.98

1.30

1.65

D3

mm

25.0

30.0

38.0

50.0

inch

1

1.2

1.5

2

H1

mm

6.5

6.5

6.5

6.5

inch

0.25

0.25

0.25

0.25

H2

mm

11.0

11.5

11.5

11.5

inch

0.43

0.45

0.45

0.45

H3

mm

14.5

14.5

14.5

14.5

inch

0.57

0.57

0.57

0.57

H4

mm

25.2

25.0

28.0

28.0

inch

1

1

1.1

1.1

Weight

g

76

108

197

345

oz

2.7

3.8

7.0

12.2
